ANSI X12 vs UN/EDIFACT

ANSI X12 vs UN/EDIFACT

Which one to choose?

To choose between ANSI X12 vs UN/EDIFACT standards it all comes down to where and with whom your doing business with. ANSI X12 is most commonly used in North America and UN/EDIFACT is mostly used in Europe and Asia.

Introduction

Electronic Data Interchange (EDI) has become an indispensable tool in today’s business world for exchanging electronic data between organizations. Two of the most widely used EDI standards are ANSI X12 and UN/EDIFACT. ANSI X12 is a North American EDI standard, while EDIFACT is used mostly in Europe and Asia. Both standards have their unique features and benefits. Let us compare both ANSI X12 and EDIFACT, their structure, segment, message type, benefits, and where they are used in different industries and countries.

Comparing ANSI X12 Vs UN/EDIFACT

Geography: The primary difference is geography. EDI X12 is most widely used in the United States and in North America. EDIFACT is mostly used by European- and Asian-based organizations.

Standards: The standards for EDI X12 are maintained by the Accredited Standards Committee X12 and EDIFACT’s standards are supported by The United Nations Economic Commission for Europe and the International Organization for Standardization.

Message structure: While the two standards both “do” the same thing – transfer data – they have slightly different terminology and document structures in how they get it done.

The table below highlights the difference between the ANSI X12 standard and the UN/EDIFACT standard.

Topic

ANSI X12

EDIFACT

Application

Mostly used in North America

Mostly used in Europe and Asia

Terminologies Equivalence

Transaction Sets

Messages

Loops

Groups

Terminators

Separators

Interchange
Header/Trailer Segments

ISA/IEA

UNB/UNZ

Group
Header/Trailer Segments

GS/GE

UNG/UNE (optional)

Transaction Set, (Message)
Header/Trailer

ST/SE

UNH/UNT

Separators Specification Segment

ISA

UNA (optional)

Commonly used Terminators, (Separators)

Segment = ~

Segment = ‘

Element = *

Element = +

Composite = >

Composite =:

Release Indicator

Not supported

Supported

Composite Elements

Rarely used

Commonly Used

Acknowledgment

TA1 and 997

CONTRL

Binary support

BIN, BDS segments

ISO 9735-8 – Associated data in EDI

Security

 ASC X12.58 – Security Structures

  – ISO 9735-5 – Security rules for batch EDI (authenticity, integrity, and non-repudiation of origin)

  – ISO 9735-6 – Secure authentication and acknowledgment message (message type – AUTACK)

  – ISO 9735-7 – Security rules for batch EDI (confidentiality)

  – ISO 9735-9 – Security key and certificate management message (message type – KEYMAN)

Terminologies Equivalence

EDI X12

EDIFACT

An electronic business document, such as an Invoice, Purchase Order, etc.

Transaction Set

Message

The blocks of multiple segments of the same type are grouped together.

Loops

Groups

Special characters to differentiate segments and elements

Terminator

Separators

Interchange Control. Header/Trailer

ISA/IEA

UNB/UNZ

Functional Group. Header/Trailer

GS/GE

UNG/UNE (optional)

Transaction Set, (Message). Header/Trailer

ST/SE

UNH/UNT

ANSI X12 Standard

ANSI stands for American National Standard Institute founded by the Accredited Standards Committee (ASC) in 1979 these are a set of standards and rules that determine a specific syntax for structuring and transferring business documents electronically between partners. This standard is also sometimes called ANSI X12 Standard or just simply X12.

ANSI X12 uses a hierarchical structure, which means that there are levels of segments. The top-level segment is the ISA segment, which identifies the sender and receiver of the message. Below the ISA segment, there are functional group segments, followed by transaction set segments, and then data segments. ANSI X12 has a wide range of message types, including purchase orders, invoices, shipping notices, and payment orders.

ASC-ANSI-X12 - Commport Communications

Transaction Set and Messages: the main body of the message — e.g., the purchase order details in a purchase order. X12 calls it a Transaction Set

The Functional Group: the header that specifies where the message will go, e.g., a company department. It can contain multiple Transaction Sets/Messages, for example, two or three invoices or an invoice and a PO. For both standards, the Functional Group has a header segment and a footer segment. X12 uses GS for the header segment and GE for the footer.

The Interchange: consists of a header and footer and identifies the company that you’re sending the document to. X12 uses ISA for the header and IEA for the footer.

The EDI Document: These characters are specified out-of-band in X12 and are an optional control segment.

ASC X12 Segments and Sequence

The following Purchase Order example shows which segments can be used in the transaction set and the desired sequence of segments:

ID            TITLE

ST           Transaction Set Header

BEG        Beginning Segment for Purchase Order

CUR       Currency

REF         Reference Identification

PER        Administrative Communications Contract

TAX        Tax Reference

FOB        F.O.B. Related Information

CTP        Pricing Information

PAM      Period Amount

CSH        Sales Requirements

TC2         Commodity

An EDI 850 also known as an electronic purchase order, is usually sent to a vendor as the first step in the ordering process. A buyer will use EDI purchase orders to order products to be shipped to a distribution center, a store, or the end consumer. An EDI 850 can be used both for a single purchase, for recurring purchases or to delete or amend an order as specified by the buyer. The 850 can contain a single ship-to location or multiple ship-to locations.

An EDI 850 generally provides the same information you would find in a paper Purchase Order (PO) document, including:

  • Item, prices and quantities ordered
  • Shipping details
  • Payment terms
  • Discounts

Benefits of ANSI X12 Standard

The ANSI X12 standard is a widely used electronic data interchange (EDI) standard in North America. It offers several benefits for organizations that use it to exchange electronic data. Here are some of the main benefits of the ANSI X12 standard:

Streamlined Electronic Data Exchange

The ANSI X12 standard enables organizations to exchange electronic data in a streamlined and efficient manner. It eliminates the need for manual data entry, which can reduce errors and save time. The standard defines a consistent format for data exchange, which ensures that data is easily understood and processed by both the sender and receiver.

Wide Range of Message Types

The ANSI X12 standard offers a wide range of message types for organizations to exchange data, including purchase orders, invoices, shipping notices, and payment orders. This allows organizations to exchange different types of data and automate many of their business processes.

Cost Savings

Using the ANSI X12 standard can result in cost savings for organizations. Electronic data exchange eliminates the need for paper-based transactions, reducing printing, postage, and processing costs. It also eliminates the need for manual data entry, reducing labor costs.

Increased Accuracy

The ANSI X12 standard can help improve data accuracy by reducing errors that can occur during manual data entry or paper-based transactions. The standard defines a consistent format for data exchange, which helps ensure that data is accurate and complete.

Industry Acceptance

The ANSI X12 standard is widely accepted and used in many industries, including healthcare, finance, retail, and automotive. Using a standard that is widely accepted can help organizations streamline their business processes and improve their supply chain efficiency.

300+ EDI X12 Transaction Codes

EDI X12 is a data format based on ASC X12 standards. It is used to exchange specific data between two or more trading partners.

Established more than 40 years ago, X12 is a non-profit, ANSI-accredited, cross-industry standards development organization whose work is used by an overwhelming percentage of business-to-business transactions upholding America’s electronic information exchange.



Free-Download-Full-List-of-EDI-ANSI-X12

UN/EDIFACT Standard

UN/EDIFACT (United Nations/Electronic Data Interchange for Administration, Commerce, and Transport is the international standard that the United Nations developed). Comprise a set of internationally agreed standards, directo­ries, and guidelines for the electronic interchange of structured data, between independent computerized information systems.

EDIFACT uses a flat structure, meaning there are no segment levels. All segments are at the same level. The UNA segment is used to identify the separator characters used in the message. Below the UNA segment, there are message header segments, followed by data segments. EDIFACT has many message types, including purchase orders, invoices, shipping notices, and payment orders.

An EDIFACT message represents a single business document. – For example, an ORDRSP file represents a Purchase Order note. Each message has a six-letter identifier that shows the short name of the message.

Any document in the UN / EDIFACT standard has a hierarchical structure. The entire electronic document is called a message. A message consists of data groups combined in some way, for example, a data group describing customs payments, a group of data describing the attributes of documents, etc. In turn, the group consists of typical data segments that describe document attributes in more detail. The standard provides about 200 different types of segments from which messages are composed. The segments themselves also have a hierarchical structure and consist of data elements that can be simple (data field) and composite (usually 2-3 data fields).

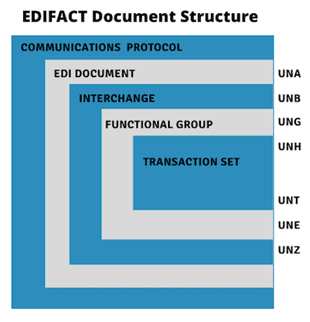

The following is the structure of an EDIFACT transmission:

  • Service String Advice
  • Interchange Header
  • Functional Group Header
  • Message Header
  • User Data Segments
  • Message Trailer
  • Functional Group Trailer
  • Interchange Trailer

UNEDIFACT - Commport Communications

See below for an example of an EDIFACT message used to answer a flight ticket (FRA-JFK-MIA) availability request:

UNA:+.? ‘

UNB+IATB:1+6XPPC:ZZ+LHPPC:ZZ+940101:0950+1′

UNH+1+PAORES:93:1:IA’

MSG+1:45′

IFT+3+XYZCOMPANY AVAILABILITY’

ERC+A7V:1:AMD’

IFT+3+NO MORE FLIGHTS’

ODI’

TVL+240493:1000::1220+FRA+JFK+DL+400+C’

PDI++C:3+Y::3+F::1′

APD+74C:0:::6++++++6X’

TVL+240493:1740::2030+JFK+MIA+DL+081+C’

PDI++C:4′

APD+EM2:0:1630::6+++++++DA’

UNT+13+1′

UNZ+1+1′

Benefits of UN/EDIFACT

Global Acceptance

UN/EDIFACT is widely accepted and used globally in many industries, including transportation, finance, retail, and healthcare. Using a standard that is recognized and accepted worldwide can help streamline business processes and improve supply chain efficiency.

Wide Range of Message Types

UN/EDIFACT offers a wide range of message types for organizations to exchange data, including purchase orders, invoices, shipping notices, and payment orders. This allows organizations to exchange different types of data and automate many of their business processes.

Reduced Costs

Using UN/EDIFACT can result in cost savings for organizations. Electronic data exchange eliminates the need for paper-based transactions, reducing printing, postage, and processing costs. It also eliminates the need for manual data entry, reducing labor costs.

Improved Accuracy

UN/EDIFACT can help improve data accuracy by reducing errors that can occur during manual data entry or paper-based transactions. The standard defines a consistent format for data exchange, which helps ensure that data is accurate and complete.

Increased Efficiency

Using UN/EDIFACT can help organizations streamline their business processes and improve supply chain efficiency. Electronic data exchange enables faster and more efficient data transfer between organizations, reducing the time and effort required for manual data entry and paper-based transactions.

Common EDI Transaction Document Codes Used in ANSI X12 and UN/EDIFACT

ANSI X12 UN/EDIFACT Name Uses
EDI 810 INVOIC Invoice Used to receive payment for goods purchased
EDI 820 REMADV Payment order / Remittance advice Used to transfer information relating to payments
EDI 830 DELFOR Planning schedule Used to share with the supplier's forecast purchase plans
EDI 832 PRICAT Price/sales catalog Used to provide product price information
EDI 846 INVRPT Inventory inquiry / advice Used to communicate inventory levels
EDI 850 ORDERS Purchase order Used to place order for goods or services
EDI 852 SLSRPT Product activity data Used to provide sales, inventory and other product activity information
EDI 855 ORDRSP PO acknowledgement Used as an acknowledgement of the purchase order
EDI 856 DESADV Advance ship notice / dispatch advice Used to inform the recipient in advance about the shipment contents
EDI 860 ORDCHG PO change (customer triggered) Used to communicate order changes to the supplier
EDI 865 ORDRSP PO change (supplier triggered) Used to acceptance or rejection of changes to a previously submitted purchase order
EDI 997 CONTRL Functional acknowledgement Used to acknowledge that an EDI transaction was received

Conclusion

X12 and EDIFACT are both widely used EDI standards for exchanging electronic data between organizations. X12 is used primarily in North America, while EDIFACT is used globally. They both have their own unique features and benefits, such as X12’s hierarchical structure and EDIFACT’s flat structure. Both standards offer a wide range of message types, allowing organizations to exchange different types of data. Regardless of which standard an organization uses, EDI enables seamless and efficient electronic data exchange.

Ready to Get Started With Commport EDI

Get a Free Quote Today!

Commport offers a wide range of EDI solutions at affordable pricing that best suits for every business type.

Need Help? Download: EDI Buyers Guide

Unlock the full potential of your supply chain with our comprehensive EDI Buyer's Guide — your first step towards seamless, efficient, and error-free transactions

Frequently Asked Questions

ANSI X12 and UN/EDIFACT are two widely used electronic data interchange (EDI) standards for exchanging business documents. ANSI X12 is primarily used in North America, while UN/EDIFACT is more common in Europe and other parts of the world. While both standards serve the same purpose of facilitating electronic communication between trading partners, they differ in syntax, structure, and data elements. Choosing between them often depends on regional business practices and partner requirements.

ANSI X12 and UN/EDIFACT have distinct data formats and structures. ANSI X12 uses a hierarchical structure with segments, elements, and sub-elements, while UN/EDIFACT employs a more flexible and hierarchical approach based on messages and segments. The choice between them should consider the specific data complexity, integration needs, and partner preferences.

Yes, certain industries tend to favor one standard over the other based on historical adoption and regional influence. For instance, industries like retail, manufacturing, and healthcare in North America often lean towards ANSI X12, whereas industries like automotive, logistics, and international trade in Europe frequently use UN/EDIFACT. However, these preferences can vary, and it’s essential to assess the requirements of your trading partners and local business practices.

While both ANSI X12 and UN/EDIFACT serve the same purpose of facilitating EDI, direct communication between systems using these different standards can require translation and mapping. To ensure seamless communication, you might need intermediary software or Value-Added Network (VAN) services that can translate messages from one standard to the other. This process ensures compatibility between trading partners using different standards.

ANSI X12 and UN/EDIFACT can significantly impact global business operations due to their regional prevalence. If your business operates internationally, it’s crucial to understand the preferred standard in the regions you engage with. Adapting to the relevant standard streamlines communication with partners, reduces translation and mapping overhead, and enhances overall efficiency in cross-border transactions.
